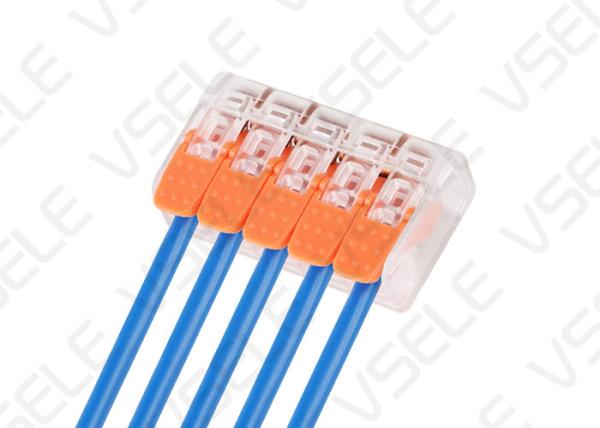

40amp Spring Splicing Pa66 Quick Wire Connectors

  • 1
  • 2

Brand Name : VSELE

Place of Origin : CHINA

Payment Terms : T/T, Paypal, Western union, L/C etc.

Delivery Time : 5~30days According to the order quantity

Name : VSE-665 Type fast wiring connector

Material : PC/PA66

Color : Transparent white body orange handle

Electrical parameters : 600V/40A

Strip length : 12-14mm

Wire diameter : 0.5-6.0mm²(BV or RV)

Contact Now

VSE-665 Type fast wiring connector

Features:

Flame-retardant material: the shell is made of new PC material, high temperature resistance and corrosion resistance
Stainless steel spring: Built-in stainless steel circlip design, stable wire clamping, to ensure that the wire connection is tight and does not fall off
Brass conductor: The conductor is made of brass, which has good conductivity and reduces loss

Electric pen test hole: humanized design, you can clearly understand the power status through the test hole

- voltages up to 600V

- current up to 40A

- have larger easier-to-lift levers.

- not only are the new connectors smaller, they also have clear see-through housings that let installers check their work

- can be used in temperatures up to 221°F (105°C), ambient up to 140°F (60°C)

40amp Spring Splicing Pa66 Quick Wire Connectors

Item.No Rated voltage Rated current Single hard wire Multiple soft cables Body color Handle color
V A mm²/AWG mm²/AWG
VSE-665 600V 40A 0.5-6.0/20-10 0.5-6.0/20-10 Transparent white Orange

Packing & Delivery
Packing
(A) Common packing:Poly bag + Neutral Label + Export carton

(B) Special packing:
a. Colorful printing poly bag + Export Carton
b. Colorful inner box + Export carton
c. OEM Label, Inner box, Blister etc

Delivery
Variety of delivery way is available,like ship by sea, DHL, FEDEX, TNT etc.
